Guatemalan Digitization Project
This a Music Information Retrieval (MIR) project involving three big steps, each related to a different type of technology. The goal of the project is to be able to retrieve digital scores with the voices properly lined-up from Renaissance polyphonic books. Renaissance polyphony is notated in:
- Mensural notation. This is an early music notation system where the duration of notes depends on the mensuration (meter), the note shape, and—when dealing with triple-meter pieces—the context (i.e., notes preceding or following).
- Separate parts. The voices are contained in different areas of the book opening (e.g., choirbook format) or on completely different books (e.g., partbooks).
In this project, a mensural music source (Guatemala City’s Metropolitan Cathedral polyphonic choirbook 1) is digitized, and then processed by different MIR technologies to convert the separate-parts layout of the voices into a score with the voices properly lined up—dealing with the intricacies of mensural notation regarding rhythmic interpretation, as well as correcting scribal errors.
The pipeline, and technologies behind the scene of each of the three steps are shown in the diagram below:
The first step (shown in green in the diagram) is digitization, which—given the lack of suitable digitization options in Guatemala—was conducted with a do-it-yourself (DIY) book scanner. Click here for details!
The next two steps are the MIR steps, which allow to semiautomatically transcribe the images of mensural sources into symbolic scores (as indicated by the orange steps in the diagdram).
The first of these orange steps is the optical music recognition (OMR) step. This OMR step was conducted with MuRET. Similar to OCR (optical character recognition) automatically recognizes the characters of digital text document, OMR (optical music recognition) automatically recognizes the music symbols in a digital music document. MuRET is an OMR framework that has support for the recognition of handwritten mensural notation (among other things), and it allows also to correct the results of this recognition process in case of errors.
Since we are dealing with mensural notation, however, recognizing the music symbols is not enough to retrieve all the rhythmic information of these symbols and line up the voices into a score. An extra step is needed, this is the automatic scoring up and editorial correction step (the last orange step in the diagram). This step is performed by the Measuring Polyphony (MP) Editor, which automatically scores up the piece (as it interprets mensural notation with a heuristic method I introduced in The Mensural Scoring-Up Tool paper) and allows for performing editorial corrections (corrections of scribal errors) that can solve alignment issues. The detection of scribal errors is facilitated by the MP Editor’s barring and switch to modern clefs functionalities, and by highlighting of “illegal dissonances.” This marking of illegal dissonances is conducted by the Dissonance Filter (DF) that is part of the humlib library. The DF is integrated into the MP Editor, it marks all the dissonances in the piece using the labels provided in this table. The ones that are considered “legal” (e.g., passing tones P/p, neighbour tones N/n, suspensions S/s and their agents G/g) are marked in blue font, while the ones considered “illegal” (e.g., unknown dissonances z, unknown dissonances in parallel accompaniment L/l, and dissonant note against known dissonance types Y/y).
The work that allows to use the output of MuRET as input to the MP Editor and the work that allows to use the DF Filter in the MP Editor is contained in the last two sections of this paper. I conducted some testing of the efficiency of using the DF filter to help catching and correcting scribal errors in an automatically scored-up piece within the MP Editor, the experiment and results can be consulted in this paper and summarized in this poster and video.
Summary of the Complete Work
The Corpus: The GCA-Gaha 1 Choirbook
This choirbook has a few sigla associated to it:
- GuatC 1, according to the Census Catalogue.
- GCA-Gc 1, according to the Digital Image Archive of Medieval Music (DIAMM) — Link to entry GCA-Gc 1 in DIAMM
- GCA-Gaha 1, which would be its correct siglum given its current location at the Archivo Histórico Arquidiocesano “Francisco de Paula García Peláez”, Ciudad de Guatemala (GCA-Gaha, according to RISM) — Link to entry GCA-Gaha in RISM.
The choirbook is a Book of Masses. It contains twelve masses: six of them copied from another book (a Libro de Kyries copied by Gaspar Fernandes in 1602), and the other six were added by Manuel José de Quirós in the eighteenth century. It also includes fifteen short pieces, which consists of polyphonic settings of chants (e.g., Asperges me and Vidi aquam).

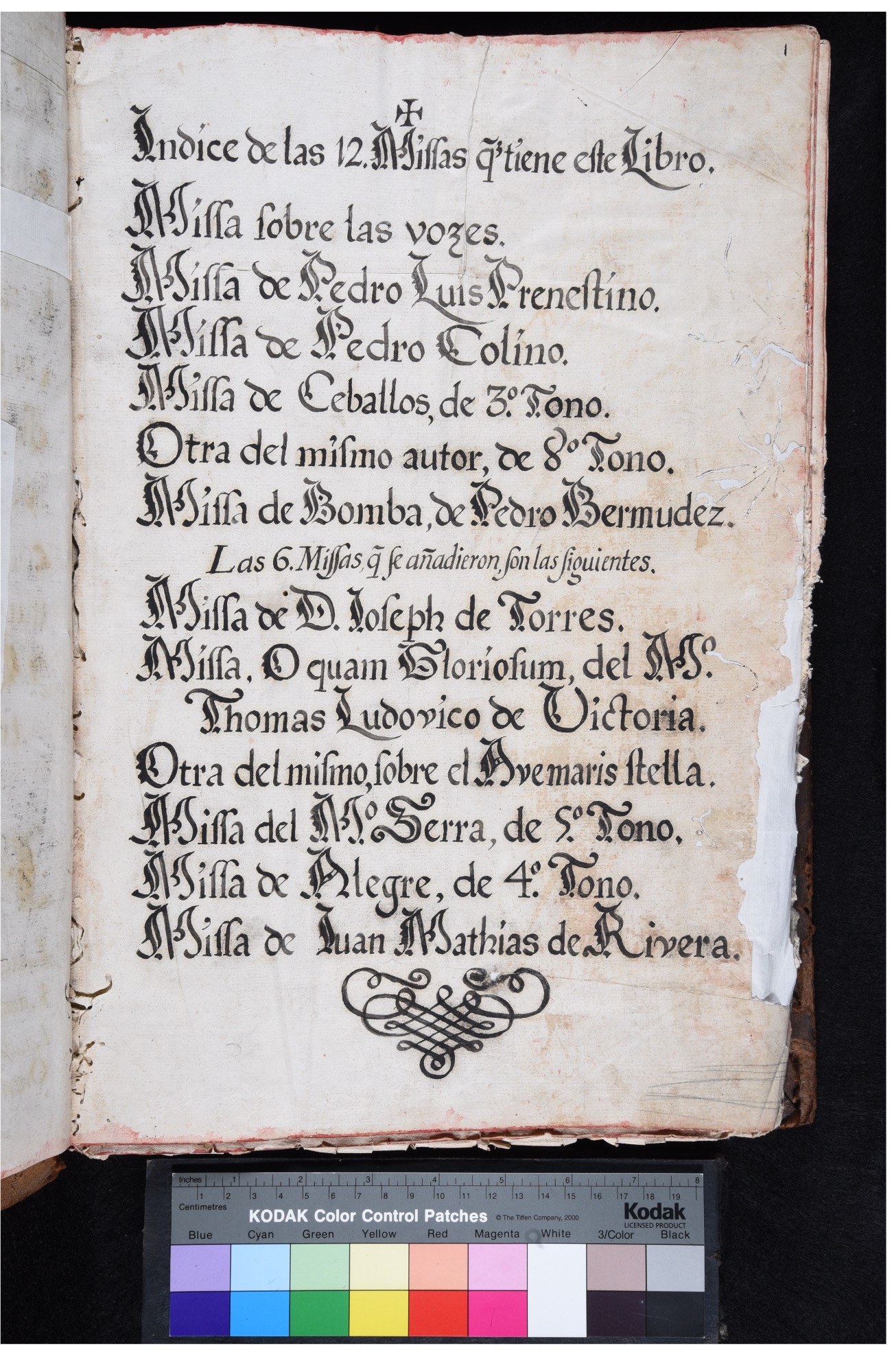

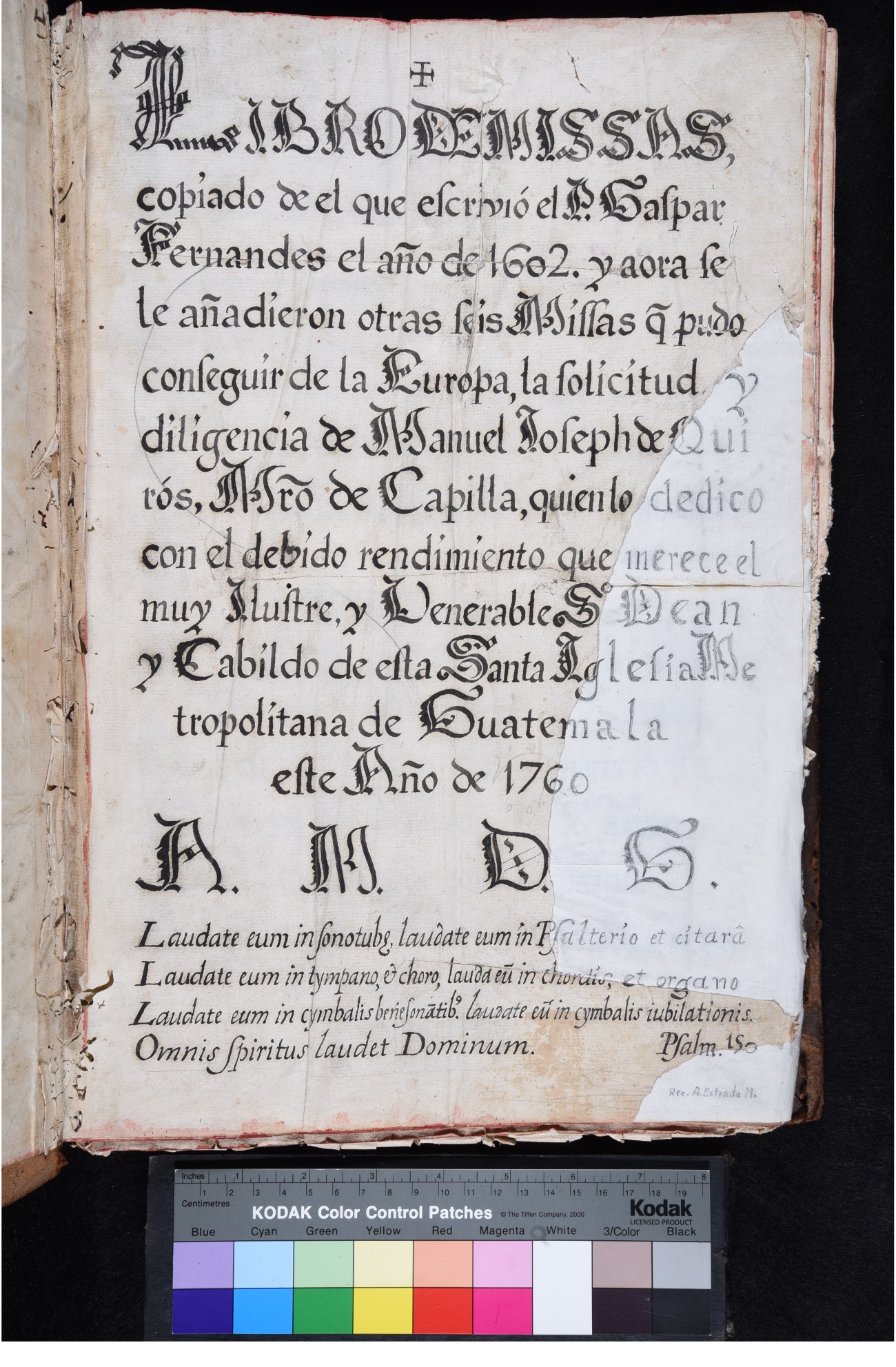

The following two images show the title page, which indicate that this book was copied from a previous one copied by Gaspar Fernandes in 1602 and to which six new masses were added by Manuel Joseph de Quirós in 176[0], and the index page, which lists the twelve masses according to these two groups (the ones from the 1602 book and the one sadded later).
Virtual Exhibition & Inventory
In the next section, you will find the inventory list of all the pieces in the choirbook. This inventory includes links to mass movements (or work sections) that, when clicked on, will open the corresponding movement (or section) in mei-friend, where the user will be able to:
- Visualize the transcription of the piece, with notes in green for editorial corrections;
- Visualize the original images (we will call these facsimile from now on);

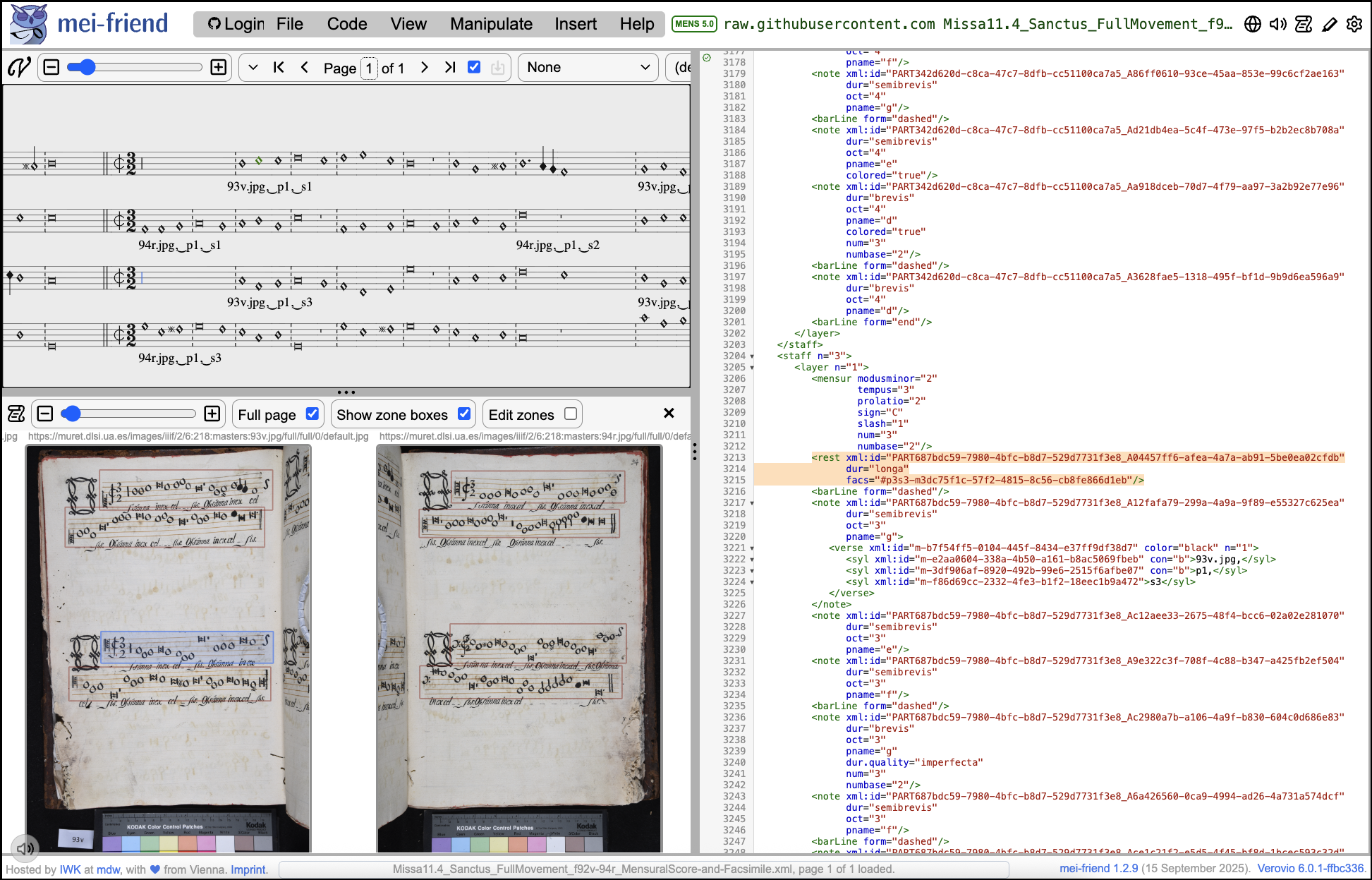

- Explore the piece thanks to the link that exists between the transcription, encoding, and facsimile. Just click on the border of the bounding boxes of the systems/staffs in the facsimile (so it is highlighted in blue), and you will be conducted to the first note/rest of that system in the transcription (which will now be highlighted in blue as well) and to its place in the encoded file (highlighted in orange). You can see this in the following figure.
- Play back the music using the speaker button in the lower-left corner.
Important note: Please make sure that you are using Chrome or Firefox, mei-friend does not work well with Safari.
The transcriptions were fully revised by Ellis Reyes (PhD Candidate in Musicology, McGill University). He proofread the whole symbolic corpus, visualizing and listening to it using mei-friend, making any corrections necessary and adding the ficta. The metadata of each file shows the names of the people (and software) involved in its creation, usually including the names of: Martha Eladia Thomae Elias (mine), Ellis Reyes (proofreader of the whole corpus and in charge of ficta accidentals), Geneviève Gates-Panneton (when involved), and ocasionally Julie E. Cumming and Peter Schubert (who acted as consultants in a few instances).
Inventory List
Here is the list inventoring the contents of the GCA-Gaha 1 (the composer attribution was provided by Guatemalan Musicologist Omar Morales Abril). Click on the links to open the pieces in mei-friend, where you will have access to a kind of “virtual exhibition” showing the transcriptions, with editorial corrections in green; the original images; the link between the transcription, images, and encoding; and playback, just as explained in the previous paragraph. Click on the links! Have a look!
1. Asperges me - [Pedro Bermúdez?]
Added in the 18th century.
2. Asperges me - Anonymous
Added in the 18th century.
3. Vidi aquam - Pedro Bermúdez
Added in the 18th century.
4. Vidi aquam - [Hernando Franco]
Added in the 18th century.
5. Asperges me - [Alonso Trujillo]
Added in the 18th century.
6. Missa sobre las voces - Cristóbal de Morales
From the 1602 Libro de Kyries, copied by Gaspar Fernández. This is Morales’s hexachord mass, which, according to Robert Snow (1996, p. 19), is preserved in only three other sources: a manuscript at the Capilla Real in Granada, the manuscript formerly known as Medinaceli 607 and now owned by Bartolomé March Servera, and Tarazona 5.
7. Missa sine nomine - Giovanni Pierluigi da Palestrina
From the 1602 Libro de Kyries, copied by Gaspar Fernández. This is the Missa sine nomine first published in the compsoer’s Missarum liber secundus in 1567 (RIMS P 660), see Snow (1996, p.19).
8. Missa Pere de nous - Pierre Colin
From the 1602 Libro de Kyries, copied by Gaspar Fernández. This is Colin’s Missa Pere de nous, published at Lyon in 1546 by Jacques Moderne in his Liturgicon musicarum duodecim missarum (RISM C 3310), see Snow (1996, p.19).
9. Missa de 3er tono - Rodrigo de Ceballos
From the 1602 Libro de Kyries, copied by Gaspar Fernández. This is Ceballos’s popular Missa tertii toni, preserved in at least ten other sources (Snow 1996, p.19).
10. Missa sine nomine - José de Torres y Martínez Bravo
Added in the 18th century.
11. Missa O quam gloriosum - Tomás Luis de Victoria
Added in the 18th century. Many concordant European sources.
12. Missa Ave maris stella - Tomás Luis de Victoria
Added in the 18th century. Many concordant European sources.
13. Missa de 5to tono - Luis Serra
Added in the 18th century.
14. Missa de 4to tono - Alegre
Added in the 18th century.
15. Missa de 8to tono - Rodrigo de Ceballos
From the 1602 Libro de Kyries, copied by Gaspar Fernández. This is Ceballos’s Missa Simile est regnum caelorum, a parody mass based on a motet by Morales (Snow 1996, p.19).
16. Missa de Bomba - Pedro Bermúdez
From the 1602 Libro de Kyries, copied by Gaspar Fernández. Parody mass based on Mateo Felcha’s (el Viejo) ensalada la Bomba.
17. Missa sine nomine - Juan Matías de Rivera
Added in the 18th century.
18. Christus natus est - Pedro Bermúdez
Added in the 18th century.
19. Christus natus est - Pedro Bermúdez
Added in the 18th century.
20. Christus natus est - Anonymous
Added in the 18th century.
21. Surrexit Dominus vere - Anonymous
Added in the 18th century.
22. Lumen ad revelationem - Hernando Franco
Added in the 18th century.
23. Lumen ad revelationem - Pedro Bermúdez
Added in the 18th century.
24. Lumen ad revelationem - Pedro Bermúdez
Added in the 18th century.
25. Surrexit Dominus vere - Anonymous
Added in the 18th century.
26. Victimae paschali laudes - Francisco Guerrero
Added in the 18th century.
27. Tantum ergo - [Pedro Bermúdez]
Added in the 18th century.
The original files can be found at the GuatC1 GitHub repository - main branch.
